Bracket Template For Harley Road King Pipes

By James Scott Reischling
Posted on Saturday, May 01, 2004 - 10:02 am:
--------------------------------------------------------------------------------
Hi everybody! It's official...Since I'm now a full fledged member, it's time for me to give something back to the riders of the "Baddest of all Baggers" on the road. Without the creative genius of everyone on this site, my "Starliner" would be just another "also ran" among the store bought cowboys I run with riding H-D's. No offense to those of you who do....I did my share of motorhiking with my '76 Super Glide back in the 70's & 80's.

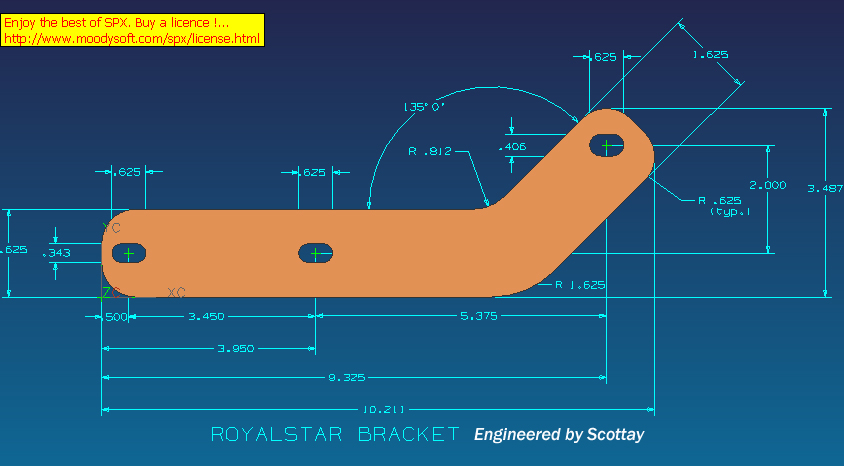

Anyway, I'd like to give something back to everyone doing the Road King pipe conversion. Here's the blueprint of the rear bracket template. It fits my '99 perfectly, so it should fit everyone elses. I made mine out of 1/4" thick stainless steel, but you can use regular pig iron if you like.

--------------------------------------------------------------------------------
Scottay

To Print, Right Click on Template, then select Print Picture




Last update: 06:02 PM Sunday, September 26, 2004
